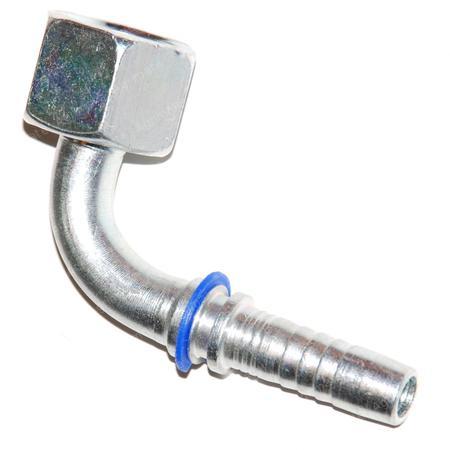

SWAGE NIPPLE METRIC 24° CONE S TYPE – FEMALE – 90° M30 X 2.0 – HOSE 5/8”

Name: SWAGE NIPPLE METRIC 24° CONE S TYPE – FEMALE – 90° M30 X 2.0 – HOSE 5/8”
Price: 8.39 GBP
Availability: InStock

SWAGE NIPPLE METRIC 24° CONE S TYPE - FEMALE - 90°

The Swage Nipple Metric 24° Cone S Type – Female – 90° M30 X 2.0 – Hose 5/8” is a replacement part for agricultural machinery. Key dimensions: Elbow 90°, A (mm) 48.5, B (mm) 56.

£6.99 exc. VAT

£8.39 inc. VAT

In Stock

Category 'TWO'' Piece Crimp Fittings > Metric

Weight 0.22 kg

Dimensions (L×W×H) 4 x 7 x 10 cm

Technical Specifications

Technical drawing for SWAGE NIPPLE METRIC 24° CONE S TYPE – FEMALE – 90°
M30 X 2.0 – HOSE 5/8”

Weight 0.22 kg

Dimensions 4 x 7 x 10 cm

Elbow 90°

A (mm) 48.5

B (mm) 56

D (mm) 20

Gender Femelle / Female

H (mm) 36

Hose Ø 5/8"

Tube (mm) 20

Designation DKOS-M30X2-90°-DN 16

Sort Thread Métrique / Metric

Thread / Ø M30 x 2

M30 X 2.0 - HOSE 5/8''
