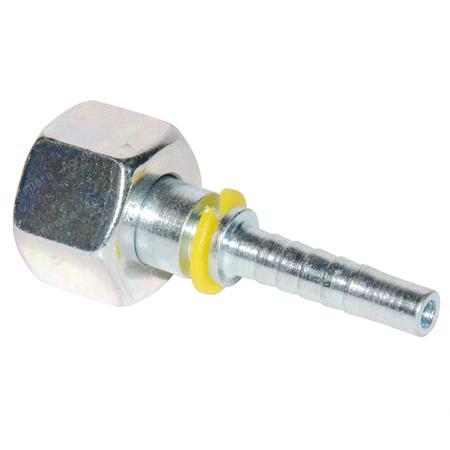

SWAGE NIPPLE METRIC 24° CONE L TYPE – FEMALE M18 X 1.5 – HOSE 5/16”

Name: SWAGE NIPPLE METRIC 24° CONE L TYPE – FEMALE M18 X 1.5 – HOSE 5/16”
Price: 2.39 GBP
Availability: InStock

SWAGE NIPPLE METRIC 24° CONE L TYPE - FEMALE

The Swage Nipple Metric 24° Cone L Type – Female M18 X 1.5 – Hose 5/16” is an O-Ring Female replacement part. Key dimensions: Elbow 0°, A (mm) 26, B (mm) 12.

£1.99 exc. VAT

£2.39 inc. VAT

In Stock

Category 'TWO'' Piece Crimp Fittings > Metric > O-Ring Female

Weight 0.06 kg

Dimensions (L×W×H) 2.6 x 2.6 x 5.6 cm

Technical Specifications

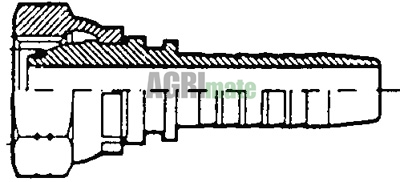

Technical drawing for SWAGE NIPPLE METRIC 24° CONE L TYPE – FEMALE
M18 X 1.5 – HOSE 5/16”

Weight 0.06 kg

Dimensions 2.6 x 2.6 x 5.6 cm

Elbow 0°

A (mm) 26

B (mm) 12

Gender Femelle / Female

H (mm) 22

Hose Ø 5/16"

Tube (mm) 12

Designation DKOL-M18X1,5-DN 08

Sort Thread Métrique / Metric

Thread / Ø M18 x 1.5

M18 X 1.5 - HOSE 5/16''
