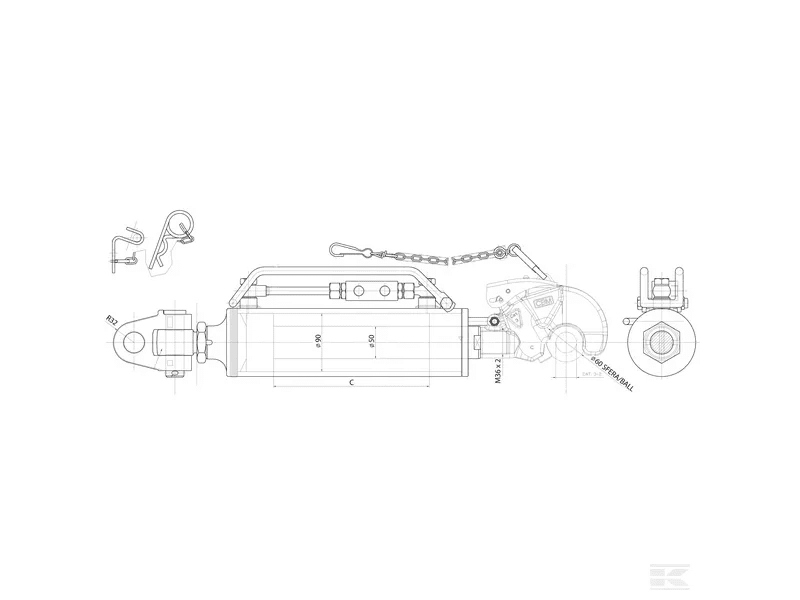

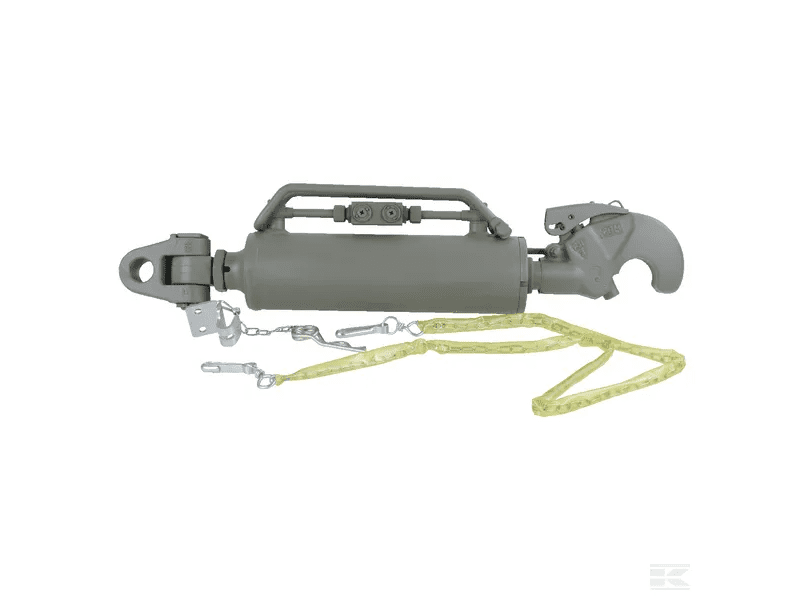

Hydraulic toplink cat.3. 32mm Tractor pin

Hydraulic Toplink

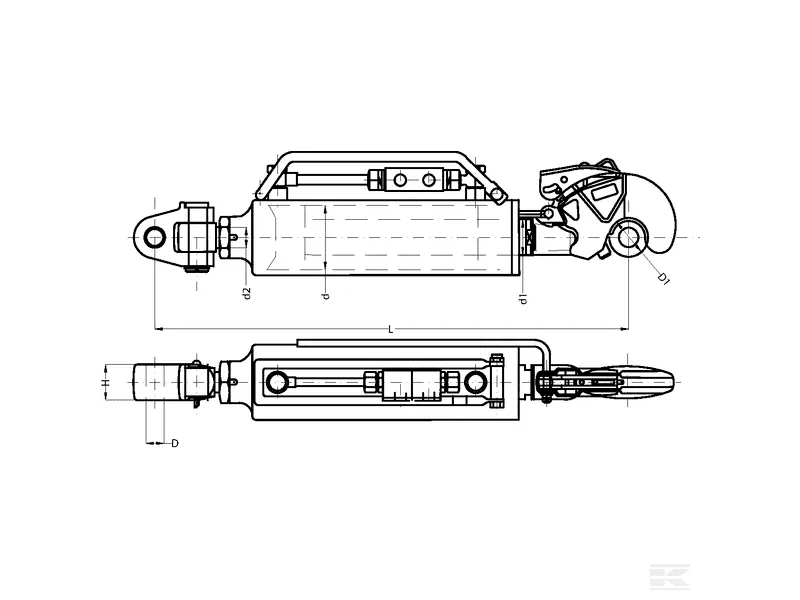

Properties: With knuckle tractor attachment 32mm tractor pin With hook Consists of: Check valve Stroke scale Release cable Retaining bracket Bolted clevis on tractor side Hose kit D1 Ball diameter: 60 mm D Bore diameter: 32 mm Category: 3 d1 Connection diameter: 50 mm L Length max: 906 mm L Length min: 666 mm d Pressure tube diameter: 90 mm Yoke width: 51 mm
