DOUBLE IMPLEMENT MOUNTING PIN Ø 25/19 mm – L 180 mm
DOUBLE IMPLEMENT MOUNTING PIN
The DOUBLE IMPLEMENT MOUNTING PIN Ø 25/19 mm – L 180 mm is a Double Pin replacement part. Key dimensions: Fig. 1, L (mm) 180, D1 (mm) 25.
£2.99
exc. VAT
£3.59 inc. VAT
In Stock
Category
Double Pin > Linkage > Top Links and Components
Weight
0.53 kg
Dimensions (L×W×H)
21 x 4 x 4 cm
Technical Specifications
Weight
0.53 kg
Dimensions
21 x 4 x 4 cm

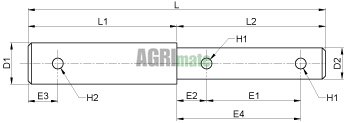

Fig.
1
L (mm)
180
D1 (mm)
25
D2 (mm)
19
D3 (mm)
n/a
E1 (mm)
57
E2 (mm)
18
E3 (mm)
n/a
E4 (mm)
75
H1 (mm)
5
H2 (mm)
n/a
L1 (mm)
90
L2 (mm)
90
L3 (mm)
n/a
Ø 25/19 mm - L 180 mm
